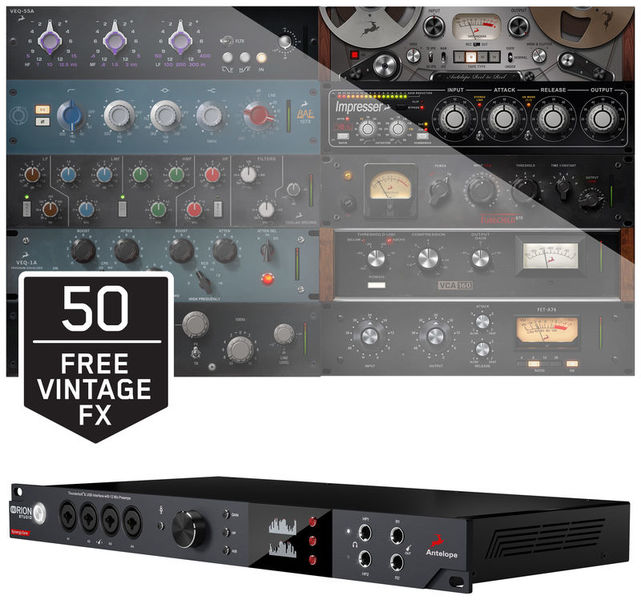

Antelope Orion Studio Synergy Core

4.8 su 5 stelle su 52 valutazioni dei clienti
Steinberg Retrologue 2 in omaggio!

Steinberg Retrologue 2 in omaggio!

Se acquisti questo prodotto entro il 30 giugno 2025 riceverai gratuitamente da Steinberg una licenza Retrologue 2 del valore di 99,00!

Promo Antelope All In

Promo Antelope All In

Se acquisti una delle interfacce selezionate Antelope Synergy Core tra il 1° febbraio 2025 e il 30 aprile 2025 riceverai gratuitamente una licenza completa per Bitwig Studio Essentials automaticamente per e-mail, dopo aver effettuato la registrazione del numero di serie nell’account Antelope (attivazione entro e non oltre il 15 maggio 2025). Per di più, nell’account Antelope sarà possibile attivare l’abbonamento a oltre 90 effetti in tempo reale e oltre 60 plug-in nativi per un anno intero al prezzo di 9,99 euro (opzione facoltativa, l’abbonamento si rinnoverà automaticamente, salvo disdetta).

Interfaccia audio Thunderbolt 3 e USB 2.0 a 32 canali

  • Include 51 effetti da studio
  • 2 FPGA + 6 chip DSP integrati per il calcolo degli effetti in tempo reale
  • Clocking acustico a 64 bit Antelope
  • 12 preamplificatori microfonici con Gain fino a 75 dB e alimentazione phantom +48 V
  • Audio surround e immersivo, calibrazione dei diffusori e funzionalità monitoring compatibili con Dolby Atmos (è necessario l'aggiornamento tramite Antelope Launcher)
  • Compatibile con il sistema di controllo remoto multicanale Antelope Audio MRC (art. 569148)
  • 4 ingressi Hi-Z
  • 2 uscite stereo di controllo con gamma dinamica di 130 dB - possono essere utilizzate in parallelo o in modalità A/B
  • 2 uscite stereo indipendenti per cuffie
  • 2 uscite ReAmp
  • 16 uscite Line tramite DB25
  • Insert analogici per gli ingressi 1 e 2 (TRS da 6,3 mm)
  • Ingresso/uscita S/P-DIF (2 x RCA)
  • 2 ingressi e uscite ADAT
  • Gli ingressi e le uscite con accoppiamento in corrente continua consentono di inviare e ricevere segnali CV/gate
  • Wordclock I/O
  • Esteso pannello di controllo software con routing audio flessibile
  • Dimensioni (L x P x A): 483 x 220 x 44 mm
  • Peso: 3,1 kg
  • Requisiti di sistema: Windows 10 (64 bit), min. Mac OS X 10.12 (consigliato 10.14 Mojave)
In catalogo dal Agosto 2019
Numero di articolo 472303
Unità incluse 1 Pezzo
Canali Recording / Playback 64x64
Numero di Input microfonici 12
Numero di Line Input 12
Numero di Input Strumenti 4
Numero di Line Output 20
Uscite cuffie 2
Phantom Power Si
Numero di connettori S/PDIF 1
Numero di connettori ADAT 2
Connettori AES/EBU 0
Numero di connettori MADI 0
Ethernet 0
Altri connettori No
Connettore MIDI No
Word Clock 1xIn, 1xOut
Velocità di campionamento 192 kHz
Risoluzione max. in bit 24 bit
Bus-Powered No
Incl. Alimentatore Si
Driver Windows Thunderbolt Si
Thunderbolt Version 3
Larghezza in mm 483 mm
Profondità in mm 220 mm
Altezza in mm 44 mm
Numero di Mic Inputs 12
Numero di Line Inputs 12
Numeri di ingresso strumento 4
Numero di Line Outs 20
Uscite Cuffie 2
Alimentazione phantom 1
Numero di Connettori S/PDIF 1
Numero di Connessioni ADAT 2
Numero di Connessioni AES/EBU 0
Numero di Connessioni MADI 0
Altre Connessioni No
Frequenza di campionamento massima (kHz) 192 kHz
Massima risoluzione in bit 24 bit
Incl. alimentazione 1
Versione USB 2.0
Incluso Alimentatore
Null Latency Monitoring 1
Tipo di Connessione USB-B
Mostra altro
€ 2.738
Tutti i prezzi incl. IVA
Disponibile
Disponibile

Questo prodotto è disponibile e può essere spedito immediatamente.

Informazioni sulla spedizione
1

52 Valutazioni dei clienti

4.8 / 5

Devi effettuare il login per poter lasciare una recensione.

IMPORTANTE: Per evitare di inserire informazioni per sentito dire, non complete o sbagliate, permettiamo di dare un giudizio delle attrezzature solo ai nostri clienti che hanno comprato la merce direttamente da noi.

Dopo il Login trovi nella tua area cliente troverete sotto la sezione "Giudica i prodotti" tutti gli articoli ai quali potrete dare un giudizio

uso

Caratteristiche

Suono

Qualità

44 Recensioni

T
UNA DELLE MIGLIORI SCHEDE AUDIO
Tourin96 05.02.2023
Sto usando questa fantastica scheda audio da circa 9 mesi e posso dire che è una scheda audio incredibile. La utilizzo per registrare la batteria con 12 microfoni e posso dire che la qualità è altissima, perchè grazie anche ai suoi effetti riesco sempre ad ottenere quello che voglio in poco tempo e senza fare grandi settaggi. La consiglio vivamente a tutti e non vi nascondo che appena potrò ne prenderò un'altra perchè devo ampliare gli ingressi microfonici.
uso
Caratteristiche
Suono
Qualità
3
0
Segnala un abuso

Segnala un abuso

R
Exccelletn sound quality but..
Rickyf 11.02.2025
the interface and the mixer are very nice but it often gives problems recognizing the usb and fails installing drivers. Not ideal when need to work and the interfaces doesn't run.
uso
Caratteristiche
Suono
Qualità
0
0
Segnala un abuso

Segnala un abuso

google translate gb
Sfortunatamente si è verificato un errore, La preghiamo di riprovare più tardi.
D
Amazing products
Deesak 02.06.2020
I switched from AVID HD I/O to Antelope Orion Studio Synergy Core.

AVID HD I/O is also a very good product, but I was surprised by the audio interface of Antelope Orion Studio Synergy Core.
It is an excellent product in terms of both quality and cost performance.

You can select the input method for microphone, line and direct input. Direct In is an input method for direct A/D conversion, I thought it would be very good to capture analog summing sound and hardware effects by direct In.

With the advent of DAW, you have more things to do, such as composing, recording, mixing, and mastering, and it answers all those needs. You won't need to replace it for at least 5 years from now.

Also worth noting is that it comes with FPGA FX. To be honest, I didn't expect much compared to waves and UAD.
But I soon realized that it was a big mistake. The quality of FPGA FX is very high, and I mainly used FPGA FX now.

Note that FPGA FX differs from ordinary plug-ins in that effects are processed in hardware, which requires cumbersome routing to make the effects work on the DAW. However, if you purchase the AFX2DAW plugin provided by Antelope separately, you will be able to use FPGA FX easily on the DAW without troublesome routing, so you should purchase the AFX2DAW.
However, since FPGA FX is only processed in hardware,offline bounce is not supported. This is a little inconvenient because it requires real-time export.

It seems that there will be more FPGA FX from third parties in the future, so I'm looking forward to it.
uso
Caratteristiche
Suono
Qualità
14
4
Segnala un abuso

Segnala un abuso

google translate gb
Sfortunatamente si è verificato un errore, La preghiamo di riprovare più tardi.
AS
Great interface
Adam Sz 22.11.2021
I switched to Antelope Orion Studio Synergy Core from Audient iD44. I was looking for superb converters, multiple channel tracking, onboard DSP and quality plugins. In comparison to the obvious competition Antelope gives more value for the same money especially with the great special deals going on.

My expectations have been certainly met. The sound of the interface is great. The power of onboard DSPs and FPGAs is impressive. Plugins are of really high quality matching the top league.

The instalation and registration process was seamless. While waiting for a newer machine I plugged it into older 2012 Mac Book Pro via USB and everything worked with no problem including the plugins in the Control Panel.

What I don't like:
I wish the GUI of the plugins was better - resizable and scalable, with possibly more than two effects visible at once.
I would also prefer to have a physical power off button available on the device.
I wish the discounting model of the plugins was simpler and cleaner. Now I have to look at the bundles and see what combination gives the best value for the price, and it's overall the game I don't like to play.
Anyway they are the details I can easily live with and they don't change my overall very positive experience.
